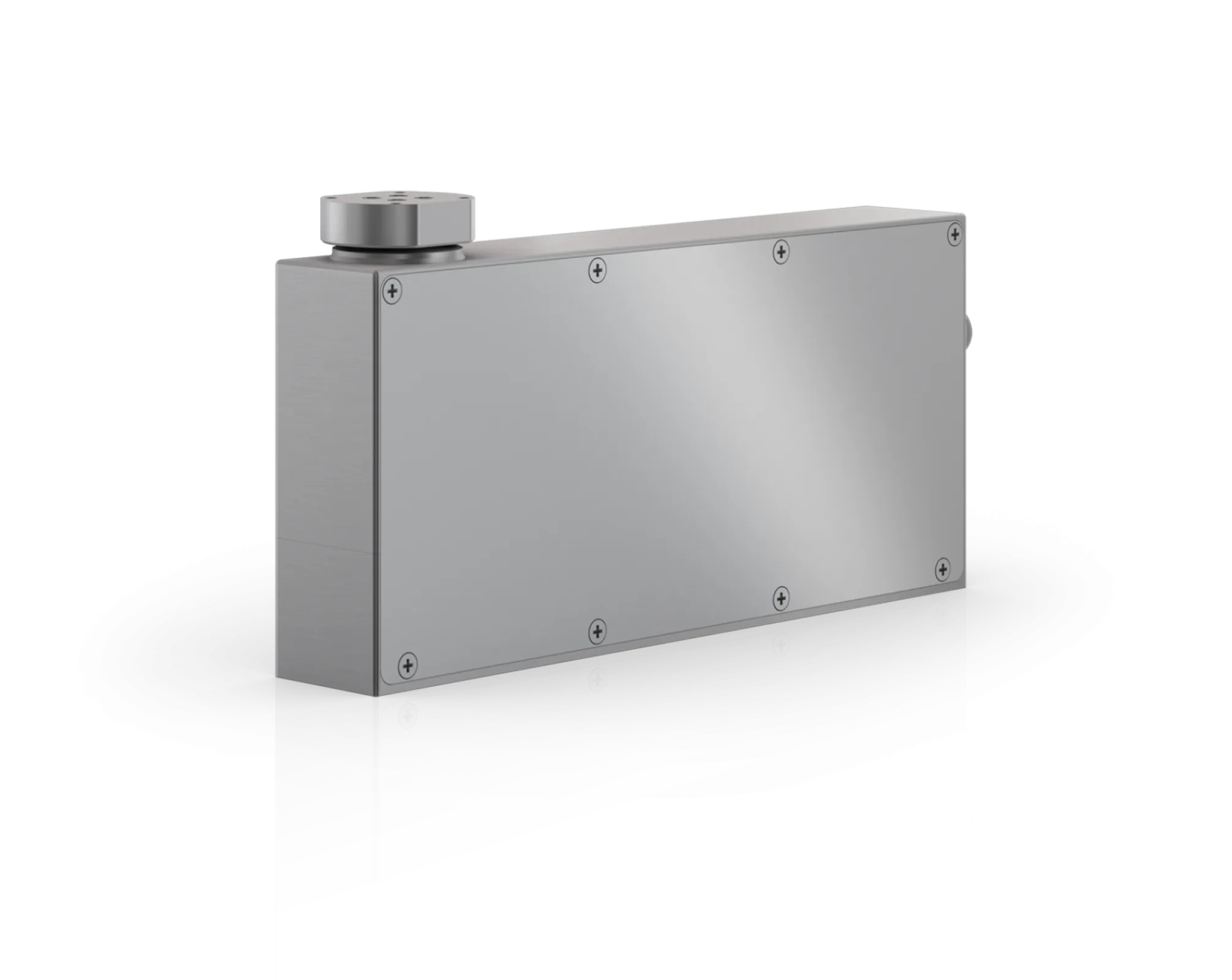

The SL-M-FS Weigh Cell series covers a weighing range up to 1,000 g. Thanks to a wide variety of different interfaces the Weigh Cells can communicate with all control systems on the market.

From a weighing perspective, the electronics are installed in a separate housing. This prevents a build-up of heat which is particularly detrimental to fast, high-precision weighing, particularly in multilane applications. It also means that there is no need for complex cooling.

As an alternative to the electronic box, the Weigh Cell can also be operated on MMS2 system components (MMS2 = Modular Multilane System). These components are designed in protection class IP65 and there is no need for an additional control cabinet. AVC (Active Vibration Compensation) can also be used in combination with MMS2.

The Wash Down option is now also available for the aluminum version of the Weigh Cell. This provides convenient connection of a common hygienic cover, particularly in the case of multilane applications.

In the load output area, the patented design enables easy assembly/disassembly with guaranteed tightness.

All versions now also include the Self Check option. An internal test weight can be used at any time to check that the Weigh Cell is working properly, e.g. during a batch change under clean room conditions.

The Weigh Cells are available in different versions for a wide range of requirements:

Stainless steel versions:

■ With Wash Down and Self Check option

■ The installation height is 112 mm

Aluminium versions:

■ With Wash Down and Self Check option

■ With clamping ring for (secondary) hood installation

■ The installation height is 112 mm

Aluminium version:

■ With Self Check option

■ The installation height is 91 mm
