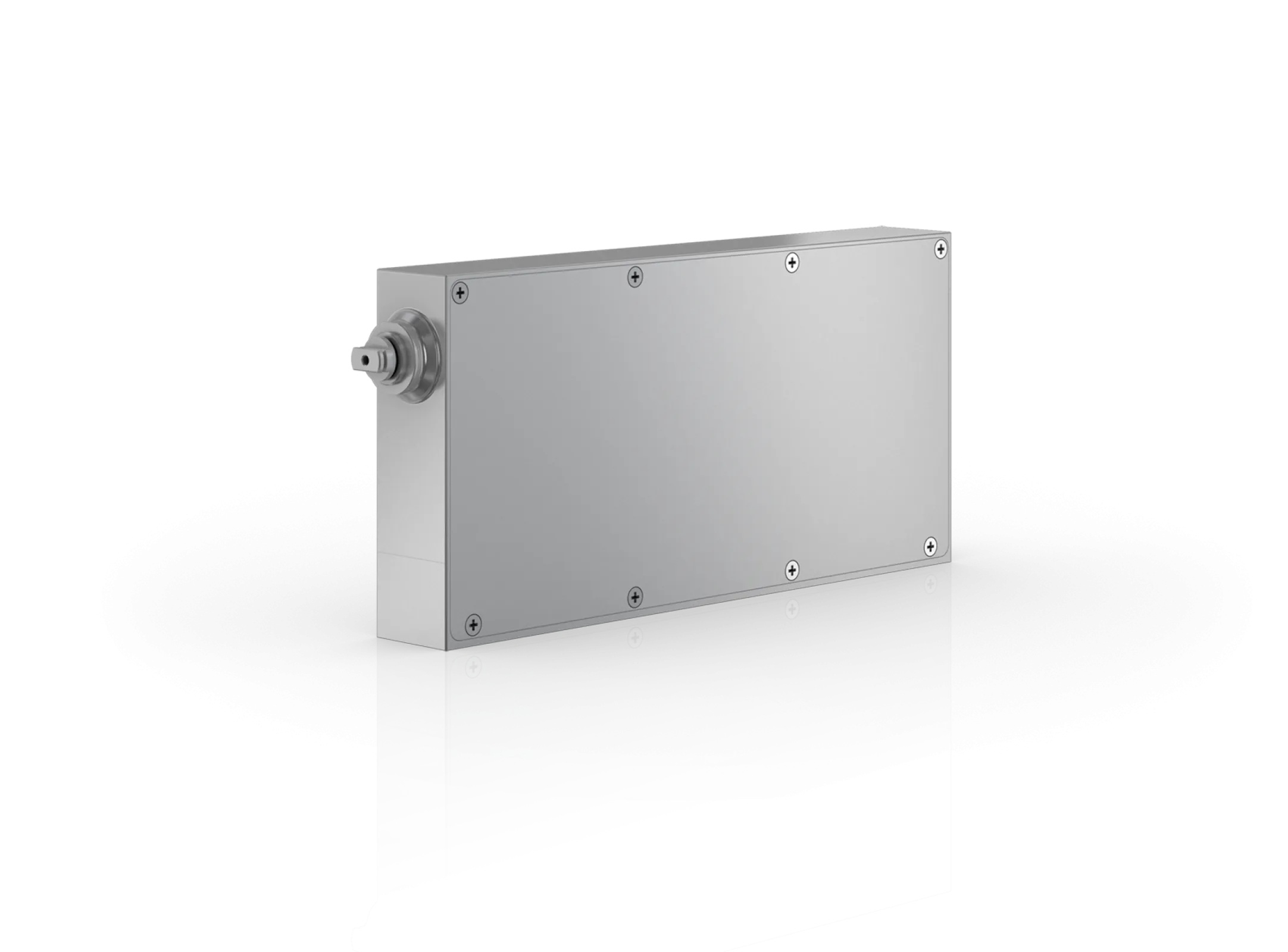

The SX-M-FS Weigh Cell series covers a weighing range up to 60 g. Thanks to a wide variety of different interfaces the Weigh Cells can communicate with all control systems on the market.

From a weighing perspective, the electronics are installed in a separate housing. This prevents a build-up of heat which is particularly detrimental to fast, high-precision weighing, particularly in multilane applications. It also means that there is no need for complex cooling. As an alternative to the electronic box, the Weigh Cell can also be operated on MMS 2 system components (MMS 2 = Modular Multilane System). These components are designed in protection class IP65 and there is no need for an additional control cabinet.control cabinet. AVC (Active Vibration Compensation) can also be used in combination with MMS 2.

The Weigh Cell provides a convenient hygiene-compliant enclosure option particularly for multilane applications. In the load output area, the patented design allows easy assembly/disassembly with guaranteed tightness. The Weigh Cells are available in different versions for a wide range of requirements:

Load output top:

■ With clamping ring for (secondary) hood installation

■ The installation height is 89 mm

Load output front:

■ With clamping ring for (secondary) hood installation

■ The installation height is 84 mm
